Nokia 130 TA1017 Keypad Ways

if you want learn repair this fault
nokia ta 1017 keypad ways. then you are at right place. her
you Excellent lern Nokia 130 call button not working۔

مکمل تفصیل کے ساتھ پڑھنے کے بعد اپنی رائے کمنٹس میں ضرور دیں شکریہ

Thank you for your feedback comments after reading with full detail

DESCRIPTION

Nokia 130 keypad ways ( 2017 ) is Featuring a bended, ergonomic body Classic,

ergonomic plan to all the more likely fit your hand and with dependable battery

 for music playback last as long as 45 hours and keypad configuration is Island keymat for simpler

messaging and dialing. Outside

Island keymat with isolated keys for more prominent convenience

Extreme polycarbonate shell

Standard 3.5mm earphone jack and Micro USB charging port 1.8″ QQVGA show

Single and double SIM models accessible Inside

Nokia Series 30+ programming stage

Pre-stacked Snake Xenzia game  Nokia 130 keypad ways

As long as 44 hours of FM radio music playback with a headset or as long as a month on reserve

from a solitary charge  FM radio and MP3 Player

MicroSD card space taking into account up to 32GB of expanded stockpiling  Molded for your palm

Highlighting a bended, ergonomic body and an island key design for simpler dialing and messaging,

the Nokia 105 gives you the sensation of a strong, quality telephone settled in the palm of your hand.

It's great to talk nokia ta 1017 keypad ways The versatile battery presents as long as 15 hours of talk time

 or a month ready and waiting 1, so you can talk from first light until nightfall.

Introduction Nokia 130-TA 1017 Mobile

Introduction Nokia 130 ta 1017 Keypad connection
power key
2 connection outside ground and inside cpu
 keypad inside connection
five keys konnect one connection
1.2.3.down.right. The inside connection is the same
 4.5.6..left.option. The inside connection is the same
 7.8.9.menu.up. The inside connection is the same
 *.0.#.call.back. The inside connection is the same
 keypad Outside connection
 four keys konnect one connection
 1.4.7.*. The Outside connection is the same
 2.5.8.0. The Outside connection is the same
 3.6.9.#. The Outside connection is the same
 back.right.menu.option. The Outside connection is the same
 up.down.left.call. The Outside connection is the same

The reason for this fault
Falling under a mobile phone. Stumbling upon it. And the water in it. Don't put too much weight on it

How to Repair Nokia 130 ta 1017 Keypad Problem

To make you understand nokia ta 1017 keypad ways You can easily fix the problem in the keypad by looking at this diagram To make you understand Made in a very simple way So that you people can understand And you guys can fix that fault And master their workThis diagram is made something like this Has created a diagram Each connection is defined in a different color If the keypad does not work, we will find its views with the help of this diagram The keypad connections that protrude from the IC are highlighted at a specific location on the board And we also get readings on these points Nokia 130 call button not working In the case of We will confirm which other keys do not work in our Nokia 130 call up down and left The external connection of these keys is the same if not work call star zero hash and back keys of these keys have a one connection to the inside points. If we do not find the reading on the front side. we will find this point at the back side of the board. Nokia 130 keypad ways۔ If we are getting readings on the backside, we will jump this point from the front side point. Our keypad will start working. If no reading is found on the back side. So we will confirm the point coming out of the CPU۔ If reading is not coming from CPU, nokia ta 1017 keypad ways we will hate it first ۔ Will confirm readings again after hating۔ If we still do not get the reading, we will remove this CPU۔ And we will confirm this point on the board under IC۔ If his point so far is correct then we will reball this IC۔ And put it back in its place۔ And we will confirm its point again۔ That's the way to restore it layout

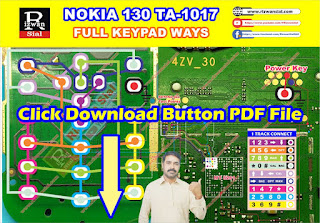

Nokia 130 keypad ways layout

nokia 130 keypad ways

nokia 130 call button not working

thanks for visiting my website
Your feedback for further improvement

My youtube channel @Rizwansial

Download File

This video will be helpful to you. To fix this problem
